The new version adds a CompactFlash slot not found on the other G3 models which supports wireless LAN, PHS, GPS and Bluetooth cards. The Caplio Pro G3 also inherits the image-tagging abilities of the Caplio Model S. Unfortunately, the CompactFlash slot cannot be used for storage, only I/O cards...
The Ricoh Caplio Pro G3 will go on sale in Japan from June 25th at a price of ¥99,800, with monthly production set at 5,000 units. Full specifications translated from the Japanese announcement follow:

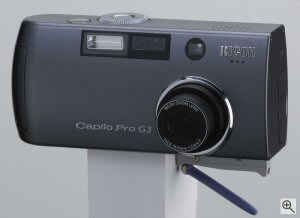

| Ricoh Caplio Pro G3 |
| |
| Record format | | Still image | Compression: JPEG (Exif v2.2); complies with DCF† and DPOF | | Text mode | TIFF (MMR system ITU-T.6) | | Movie mode | AVI (Conforms to Open DML Motion JPEG format) | | Sound | WAV (Exif v2.2) | |
| Compression | | Still image | JPEG baseline conforming | | Text mode | MMR system | | Movie mode | JPEG baseline conforming | |
| Video output | NTSC / PAL selectable |
| Recording medium | SD memory card (3.3V 8 / 16 / 32 / 64 / 128 / 256 / 512MB) / MultiMediaCard, built-in memory (8MB) |
| Image sensor | 1/2.7" primary color CCD (3.34 megapixels total) |
| Effective pixels | 3.24 megapixels |
| Resolution | | Still image | 2048 x 1536, 1280 x 960, 640 x 480 | | Text | 2048 x 1536, 1280 x 960 | | Movie mode | 320 x 240, 160 x 120 | |
| Record mode | Still image / Continuous / S-Continuous / M-Continuous / Scene (Portrait, Sports, Landscape, Night, Text, High ISO) |
| Image Quality | Fine / Normal |
| Image Capacity (8MB)†† | | Still image | 2048 x 1536 Fine: 4 images, Normal: 8 images, 1280 x 960 Fine: 8 images, Normal: 14 images, 640 x 480 Normal: 43 images | |
| Record Length (8MB) | | Movie††† | 320 x 240 18 seconds, 160 x 120 65 seconds | | Sound | 14 minutes and 2 seconds | |
| Image Size | | Still image | 2048 x 1536 Fine: Approx. 1.12MB / Normal: Approx. 568KB, 1280 x 960 Fine: Approx. 614KB / Normal: Approx. 307KB / 640 x 480 Normal: Approx. 72KB | |
| Lens | 6 elements in 5 groups, F2.6 - 4.7 |
| Zoom | 3x zoom, f: 5.5 - 16.5mm (35mm conversion 35 - 105mm), 3.4x digital zoom |
| Shutter | | Still image | 8, 4, 2, 1 - 1/2000 second (combined electronic and mechanical shutter) | | Movie | 1/30 - 1/2000 second (electronic shutter) | |
| Focusing distance | Approx. 0.3m - infinity (Macro: Tele 0.16m - 0.6m; Wide 0.01m - 0.6m) |
| ISO sensitivity | Automatic / ISO125, ISO 200, ISO400 and ISO800 |
| Viewfinder | Real image optical type |
| LCD | 1.8" transmissive amorphous silicon TFT liquid crystal display, approx. 80,000 pixels |
| Flash | Auto (backlit), On, Slow synchro, Off, Red-eye reduction |
| Focusing | Auto focus / Manual focus / Fixed (Snap / Infinity) |
| Metering | TTL-CCD metering (256-segment multi, center-weighted, spot) |
| Exposure compensation | Manual (+2.0 to -2.0EV in 1/3EV steps) |
| White balance | Auto / Fluorescent / Cloudy / Incandescent / Outdoor / One touch |
| Self-timer | Operation time: Approx. 10 seconds / Approx. 2 seconds |
| Interval timer | Photographing interval: 30 seconds - 3 hours |
| Card slots | CF card slot (I/O card)†††† x 1, SD card slot (Memory card) x 1 |
| PC interface | USB 1.1 (Windows 98 / 98SE / 2000 / Me / XP compatible) |
| Audio / video interface | Audio / video out |
| Battery | AA Alkaline x 2 (NiMH possible) or Rechargeable Lithium-Ion Battery (option) |
| Battery life††††† | When using DB43 battery: Continuous - Approx. 3,500 images; Regular use - Approx. 350 images |
| External power source | Proprietary AC adapter AC-4a (optional), input 100V, output DC 3.8V |
| External dimensions | 124 mm (W) x 43 mm (D) x 56 mm (H) (excluding projections) |
| Weight | Approximately 180g (Excluding battery / memory card / strap) |
| Temperature range | 0°C - 40°C |
| More Photos |
| |
| . |
| † DCF is an abbreviation of "Design Rule for Camera File System", which is a JEITA standard. (Does not ensure complete compatibility between equipment.) |
| †† Standard still image record size |
| ††† Maximum length at 320 x 240 is 30 seconds, and at 160 x 120 is 120 seconds |
| †††† Does not support CF memory cards |
| ††††† Battery life is based on Ricoh standard measurement, and may differ depending upon actual working conditions |
